Electric vs Hydraulic Home Elevators: A Field Engineer’s Comparison for Hyderabad Homes

What is the core difference between electric and hydraulic home elevators?

Electric gearless Machine-Room-Less (MRL) elevators use counterweighted traction motors to deliver smooth, high-speed, energy-efficient vertical travel across multiple floors. Hydraulic home elevators use an oil-driven piston pump to push the cabin upward, offering a compact, pitless design with low overhead requirements that fits easily into existing duplexes and bungalows.

Quick Comparison: Electric Traction vs. Hydraulic Home Elevators

Parameter	Electric Gearless (MRL)	Hydraulic Home Elevator	Compliance & Code Standard
Best Used For	Multi-storey villas (G+3 to G+5), high daily usage	Low-rise duplexes (G+1 to G+2), retrofits, tight footprints	BIS IS 15259 / IS 15785 / IS 14671
Drive Mechanism	Permanent Magnet Synchronous Motor (PMSM) traction	Hydraulic pump, fluid reservoir, and cylinder piston	NBC 2016 Part 8 Building Services
Cost Range (Hyderabad)	₹11.5 Lakh – ₹22.0 Lakh	₹9.5 Lakh – ₹18.0 Lakh	Transparent local market estimates
Pit Depth Needed	300 mm – 1,200 mm	100 mm – 300 mm (Pitless options available)	Structural load-bearing shaft required
Overhead Clearance	3,000 mm – 3,800 mm	2,400 mm – 2,800 mm	Top floor clearance as per IS standards
Power Consumption	Low (~1.5 kW to 3.0 kW, energy regenerated on descent)	Moderate (~3.7 kW to 5.5 kW, power used only on ascent)	Standard 3-Phase or Single-Phase VVVF
Ride Quality & Speed	Smooth acceleration, speeds up to 0.5 m/s to 1.0 m/s	Gentle start, speed capped at 0.15 m/s to 0.3 m/s	Emergency rescue device (ARD) mandatory

How to Evaluate Home Elevators in Hyderabad

How should homeowners evaluate a home elevator system before installation?

Evaluating a residential elevator requires auditing structural shaft dimensions, ceiling overhead clearances, total travel height, and electrical supply phase. Homeowners must verify equipment conformity against Bureau of Indian Standards (BIS) specifications, confirm the availability of OEM replacement parts, and ensure the installer holds a valid electrical contractor and lift installation license under local state regulations.

In our 15+ years managing vertical transportation projects across Jubilee Hills, Banjara Hills, Gachibowli, and Kompally, we frequently observe homeowners selecting residential lifts based solely on cabin interior aesthetics. This approach often leads to expensive civil modifications or recurring operational issues down the road.

When evaluating options for a premium independent villa or gated community property in Telangana, you must balance mechanical performance with long-term civil adaptability.

┌────────────────────────────────────────────────────────────────────────┐
│                   CRITICAL EVALUATION FRAMEWORK                        │
├───────────────────┬───────────────────────────────┬────────────────────┤
│ Structural Limits │ Mechanical Specifications     │ Regulatory Oversight│
│ • Pit depth       │ • Drive mechanism type        │ • BIS IS standards │
│ • Overhead headroom│ • Motor energy efficiency     │ • TSRERA approval  │
│ • Shaft footprint │ • Emergency rescue protocols  │ • Licensing rules  │
└───────────────────┴───────────────────────────────┴────────────────────┘

• Structural Adaptability: Assess whether your villa can accommodate a deep pit or high top-floor headroom. In retrofits across older housing colonies in Secunderabad, excavating a 1,000 mm pit often risks striking underground water pipes or foundational footings.
• Thermal Resilience & Fluid Management: Hyderabad’s summer temperatures frequently surpass 40°C. Hydraulic oil viscosity breaks down if pump units are housed in unconditioned headroom spaces, directly altering leveling precision at landing floors.
• Compliance and Safety Engineering: Ensure the lift equipment complies with BIS IS 15259 (Code of Practice for Installation and Maintenance of Home Lifts), IS 14671 (Hydraulic Lifts), or IS 15785 (Machine Room-Less Elevators). Verify that structural civil engineering layout details conform to guidelines established in the National Building Code (NBC) 2016.
• Local Technical Support: Vertical transport systems require precise, continuous servicing. Verify that the supplier maintains direct technical teams and stocked spare-parts centers within the Hyderabad Metropolitan Development Authority (HMDA) region.

Detailed Option Breakdown: Electric Traction vs. Hydraulic Lifts

Option 1: Electric Gearless Machine-Room-Less (MRL) Elevators

Electric gearless traction home elevators represent modern, high-efficiency vertical transport technology. The cabin hangs suspended by steel wire ropes or coated steel belts, connected to a counterweight over a traction sheave. The system relies on a compact Permanent Magnet Synchronous Motor (PMSM) installed directly inside the top of the lift shaft, removing the need for an external motor room.

         ELECTRIC GEARLESS MRL                      HYDRAULIC HOME LIFT

      ┌─────────────────────────┐               ┌─────────────────────────┐
      │  [PMSM Gearless Motor]  │               │      [Lift Cabin]       │
      └────────────┬────────────┘               └────────────┬────────────┘
                   │                                         │
        ┌──────────┴──────────┐                              │
        │                     │                              │ [Piston / Ram]
     ┌──┴───┐              ┌──┴───┐                          │
     │Cabin │              │ Weight│                     ┌───┴───┐
     └──────┘              └──────┘                      │Oil Ctr│ (Fluid Pump)
   (Counterweighted Motion)                              └───────┘
                                                   (Fluid Displacement Drive)

In field applications across multi-level residences, electric traction elevators deliver rapid, whisper-quiet operation. The counterweight offsets the mass of the cabin, meaning the motor only expends energy to handle load differentials. This balance makes gearless traction elevators the preferred selection for residences with three or more floors (G+3, G+4) where speed, precise floor levelling, and heavy daily usage are essential.

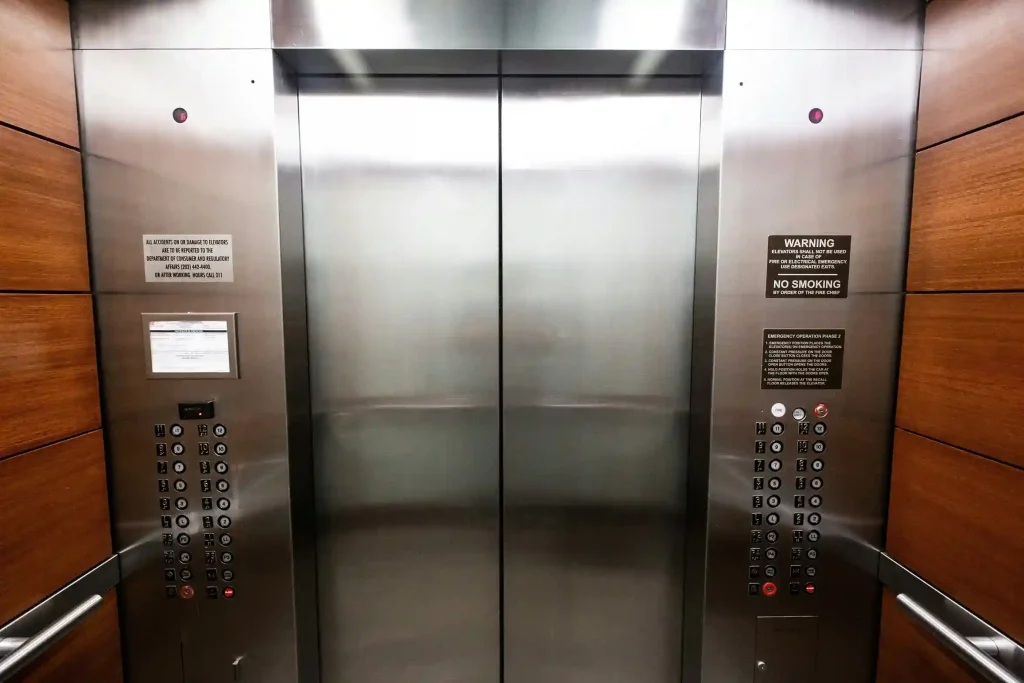

Pros and Cons of Electric Traction Elevators

Pros:

• Superior Energy Efficiency: Uses up to 50% less power than hydraulic pumps during heavy duty cycles. Regulates energy via Variable Voltage Variable Frequency (VVVF) drives.
• Higher Speed and Smoother Travel: Reaches speeds of 0.5 m/s to 1.0 m/s smoothly without mechanical vibration.
• No Hydraulic Oil Needed: Eliminates oil smell issues, fluid replacement expenses, and environmental leakage hazards during hot summer seasons.
• Extended Mechanical Lifespan: Gearless motors experience low mechanical friction, delivering longer operational life with routine maintenance.

Cons:

• Greater Overhead Requirement: Demands top-floor headroom clearance between 3,000 mm and 3,800 mm to accommodate sheave mechanisms and safety buffer clearances.
• Requires Concrete/Steel Shaft Structure: Guide rails require rigid structural anchorage along the shaft walls to handle operational dynamic loads.
• Higher Initial Purchase Price: Gearless motors, counterweight frames, and advanced controller assemblies increase initial capital outlay.

Option 2: Hydraulic Home Elevators

Hydraulic residential lifts operate via a fluid displacement mechanism. An electric pump forces non-compressible hydraulic fluid into a heavy-duty steel cylinder, driving a piston upward to raise the elevator cabin. Descending movement relies purely on controlled gravity: a solenoid valve releases fluid back into a main reservoir tank, moving the car downward without consuming electrical current.

We frequently specify hydraulic home elevators for retrofit installations, heritage properties, and low-rise duplex homes across areas like Banjara Hills and Begumpet. Because the lifting load rests entirely on the pit floor via the hydraulic cylinder, the surrounding shaft walls require less structural reinforcement compared to traction systems.

Pros and Cons of Hydraulic Elevators

Pros:

• Minimal Overhead & Pit Footprint: Fits easily into tight spaces requiring pit depths as shallow as 100 mm to 150 mm and headroom clearance under 2,700 mm.
• Lower Structural Wall Loads: Forces channel straight down into the floor slab, allowing installation alongside lightweight walls or glass enclosures.
• Simple Power Failure Emergency Rescue: During power outages, a manual or battery-backed pressure valve safely lowers the cabin to the ground floor.
• Lower Upfront Capital Cost: Simpler mechanical architecture reduces upfront procurement expenses compared to gearless traction systems.

Cons:

• Slower Operating Speeds: Operates at speeds capped between 0.15 m/s and 0.3 m/s, which can feel slow in structures over three storeys.
• Thermal and Fluid Sensitivities: High ambient room temperatures degrade oil viscosity over time, leading to minor leveling shifts or fluid odor if the pump unit is poorly ventilated.
• Higher Power Demand on Ascent: The pump motor works at full load capacity to lift the entire cabin weight without counterweight assistance, requiring a larger electrical supply feed.

Who Should Choose What? Decision Matrix

Selecting the ideal drive mechanism depends on your property layout, structural limits, financial parameters, and long-term usage patterns.

Building Architecture & Scenario	Recommended Technology	Primary Operational Reason
New Construction Villa (G+3 / G+4)	Electric Gearless (MRL)	Higher operational speed, high energy efficiency, integrated seamlessly into structural shaft plans during initial civil works.
Existing Duplex Retrofit (G+1 / G+2)	Hydraulic Elevator	Shallow pit and minimal overhead space requirements avoid costly demolition of ground beams or roof slabs.
Glass Architectural Shafts	Hydraulic or Belt MRL	Low visual obstruction; hydraulic rams or slim MRL guide frames preserve open panoramic sightlines.
High Frequency / Commercial-Home Hybrid	Electric Gearless (MRL)	Continuous duty cycle capabilities without fluid heating issues or motor thermal cut-outs.
Budget-Conscious Residential Project	Hydraulic Elevator	Lower initial equipment expenditure with straightforward civil site preparation requirements.

Cost Comparison in Hyderabad

How much does a home elevator cost in Hyderabad?

In the Hyderabad market, a standard 4-passenger hydraulic home elevator ranges between ₹9.5 Lakh and ₹18.0 Lakh, depending on travel height and shaft finishes. An electric gearless MRL elevator ranges between ₹11.5 Lakh and ₹22.0 Lakh. Total costs fluctuate based on civil shaft work, cabin customization, door automation, and regulatory safety accessories.

HYDERABAD HOME ELEVATOR INVESTMENT RANGES
├── Hydraulic Systems (G+1 to G+2)
│   ├── Base Equipment & Drive: ₹9.5 L – ₹13.0 L
│   └── High-End Glass / Premium Interiors: ₹13.5 L – ₹18.0 L
└── Electric Gearless MRL Systems (G+2 to G+4)
    ├── Base Equipment & Standard Cabin: ₹11.5 L – ₹16.0 L
    └── Fully Custom Architectural / Panoramic: ₹16.5 L – ₹22.0 L

Key Factors Influencing Overall Installation Expenses:

1. Civil Shaft Preparation: Constructing a reinforced concrete shaft, brick enclosure, or self-supporting structural steel tower adds between ₹1.5 Lakh and ₹4.0 Lakh to overall project budgets.
2. Number of Landings and Door Configurations: Each additional floor stop increases mechanical guide rail requirements, landing door assemblies, interlock safety switches, and hall call stations.
3. Cabin Interior Customisation: Upgrading from standard brushed stainless steel (SS304) to tinted glass panels, customized brass trims, or marble floor tiles directly impacts total equipment costs.
4. Power Infrastructure Upgrades: Installing 3-phase electrical wiring or dedicated Variable Voltage Variable Frequency (VVVF) inverters to ensure smooth single-phase conversion adds minor electrical costs.

Local industry specialists like Exfol Friends Elevators demonstrate transparent pricing structures in Telangana, breaking down quotes clearly between imported drive components, civil shaft preparations, and ongoing preventative Annual Maintenance Contracts (AMC).

Common Home Elevator Buying Mistakes

What are the most common mistakes when buying a home elevator in Hyderabad?

The most frequent buying mistakes include failing to plan for overhead headroom, ignoring local summer temperature impacts on motor units, omitting Automatic Rescue Devices (ARD), and selecting unlicensed local vendors who lack genuine OEM spare parts or certified field technicians.

Over years of field inspections, we repeatedly encounter installations compromised by oversight during early planning stages. Avoiding these core mistakes saves significant expense and downtime:

• Inadequate Overhead Planning: Builders often assume standard 2,700 mm (9-foot) residential ceiling heights are sufficient for electric traction lifts. Electric gearless systems typically require 3,300 mm or more overhead space to satisfy safety clearance standards.
• Neglecting Emergency Rescue Automation: Installing a residential lift without a heavy-duty, battery-operated Automatic Rescue Device (ARD) risks trapping passengers during unannounced local power outages.
• Overlooking Thermal Management: Placing hydraulic power packs or traction controllers inside unventilated, sun-exposed shaft spaces causes frequent thermal trips during Hyderabad’s hot summer months.
• Bypassing License Verifications: Contracting vendors without verifying their compliance with BIS standards (IS 15259 / IS 14665) or state safety norms exposes building owners to maintenance issues and legal liabilities.

Technical Specifications Comparison

To assist structural engineers, architects, and homebuilders with precise technical planning, the table below outlines core engineering metrics for standard 4-passenger residential home elevators installed across Telangana.

Engineering Parameter	Electric Gearless (MRL) Specification	Hydraulic System Specification
Rated Load / Capacity	300 kg – 408 kg (4 to 6 Persons)	300 kg – 408 kg (4 to 6 Persons)
Standard Car Speed	0.5 m/s to 1.0 m/s	0.15 m/s to 0.30 m/s
Minimum Pit Depth	300 mm to 1,200 mm	100 mm to 300 mm
Minimum Overhead Headroom	3,000 mm to 3,800 mm	2,400 mm to 2,800 mm
Motor Power Rating	1.5 kW – 3.0 kW (PMSM Gearless)	3.7 kW – 5.5 kW (Hydraulic Pump)
Power Supply Requirement	230V Single Phase / 415V 3-Phase	230V Single Phase / 415V 3-Phase
Control System	Microprocessor VVVF Vector Control	Microprocessor Solenoid Valve Control
Safety Governance Standard	BIS IS 15259 / IS 15785 / NBC 2016	BIS IS 14671 / IS 15259 / NBC 2016
Emergency Descent System	Automatic Rescue Device (ARD) with UPS	Manual Pressure Release Valve & Battery ARD

Frequently Asked Questions (FAQs)

1. Which home elevator is better for a G+2 villa in Hyderabad?

For a G+2 villa, both options work well. A hydraulic elevator is ideal if you have strict overhead ceiling constraints or a shallow pit. However, an electric gearless MRL elevator offers faster travel, improved energy efficiency, and lower long-term maintenance costs if your civil design supports the required overhead headroom.

2. Can a home elevator operate on single-phase electricity?

Yes. Modern home elevators—both electric gearless MRL and hydraulic types—use Variable Voltage Variable Frequency (VVVF) controllers or specialized single-phase power units. This allows them to run reliably on standard residential 230V single-phase power connections.

3. How much pit depth is necessary for an electric vs. hydraulic home lift?

Electric gearless MRL home elevators usually require a pit depth of 300 mm to 1,200 mm to accommodate buffer springs and lower cabin structural frames. Hydraulic home elevators require significantly less depth, running on shallow pits of 100 mm to 300 mm or using small entry ramps for pitless retrofits.

4. What happens if power cuts off while someone is inside the elevator?

Compliant home elevators include an Automatic Rescue Device (ARD). During a power loss, the ARD engages battery power to lower the cabin safely to the nearest floor, open the automatic doors, and allow passengers to step out safely. Hydraulic systems also include a manual pressure release valve for emergency lowering.

5. Are hydraulic home elevators noisy during operation?

Hydraulic elevators operate quietly inside the cabin. However, you may hear a mild motor hum from the pump unit during ascent when it pushes fluid into the cylinder. Proper insulation of the machine cabinet and isolation from living areas minimizes sound transmission.

6. How often do home elevators require routine maintenance in Hyderabad?

Residential elevators should undergo preventative maintenance inspections every 30 to 60 days. Regular servicing keeps safety interlocks calibrated, checks emergency batteries, inspects suspension ropes or hydraulic lines, and keeps moving components properly lubricated.

7. Does installing a home elevator require approval under Telangana regulations?

Yes, home elevators must comply with relevant safety norms, electrical connection approvals, and building design rules as outlined by local authorities and national standards, including the National Building Code (NBC 2016). Licensed lift contractors guide building owners through compliance processes and safety inspections.

8. What is the average lifespan of a residential home elevator?

With regular preventative maintenance and genuine replacement parts, a quality home elevator lasts between 15 and 20 years. Components like control boards, hydraulic seals, or drive belts may require periodic re-calibration or replacement after 8 to 10 years of active service.

Making Your Decision

Choosing between an electric gearless MRL and a hydraulic home elevator comes down to your building’s civil dimensions, total vertical travel, and long-term operational preferences.

• Choose Electric Gearless (MRL) if you are building a multi-storey villa (G+3 or higher), prioritize low power consumption, desire higher speeds, and can accommodate standard shaft overhead dimensions during early construction.
• Choose Hydraulic if you are retrofitting an existing duplex (G+1 or G+2), have strict ceiling headroom or pit depth limitations, or want a compact installation with lower upfront equipment costs.

Partnering with an experienced local vertical transportation specialist ensures accurate engineering assessments, smooth civil integration, and compliant safety installations. Established engineering firms such as Exfol Friends Elevators provide full site audits, transparent technical advice, and localized maintenance coverage across Hyderabad and Telangana.

Consider arranging an expert site feasibility study to evaluate your property’s structural dimensions, electrical setup, and ideal elevator configuration before breaking ground.
